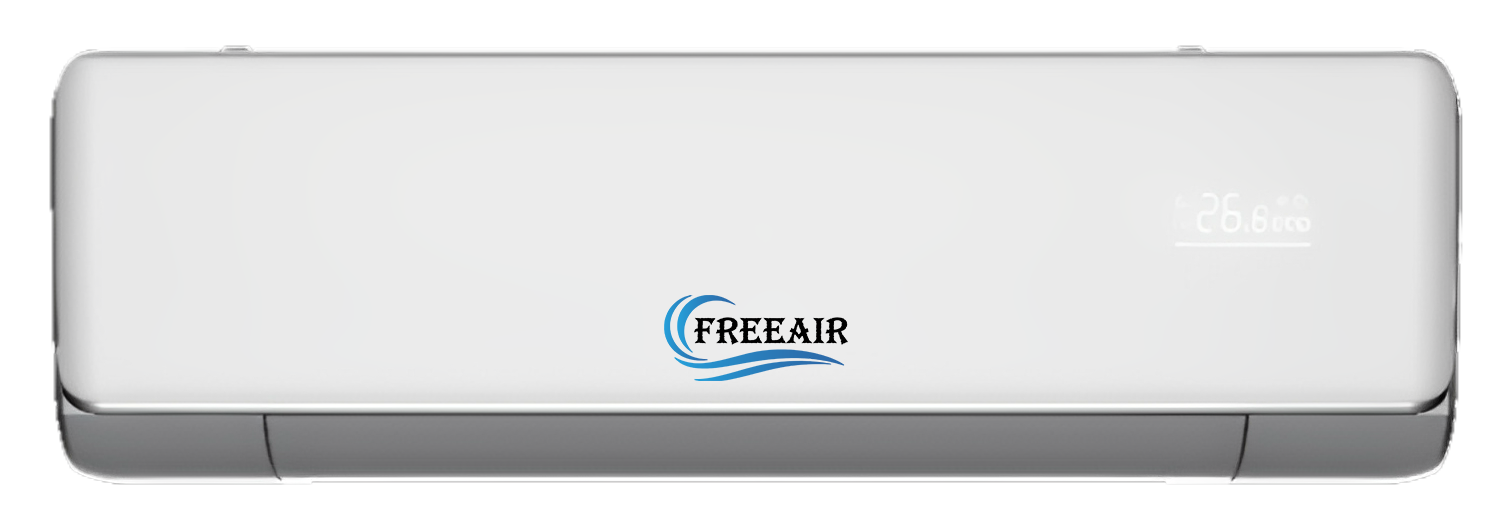

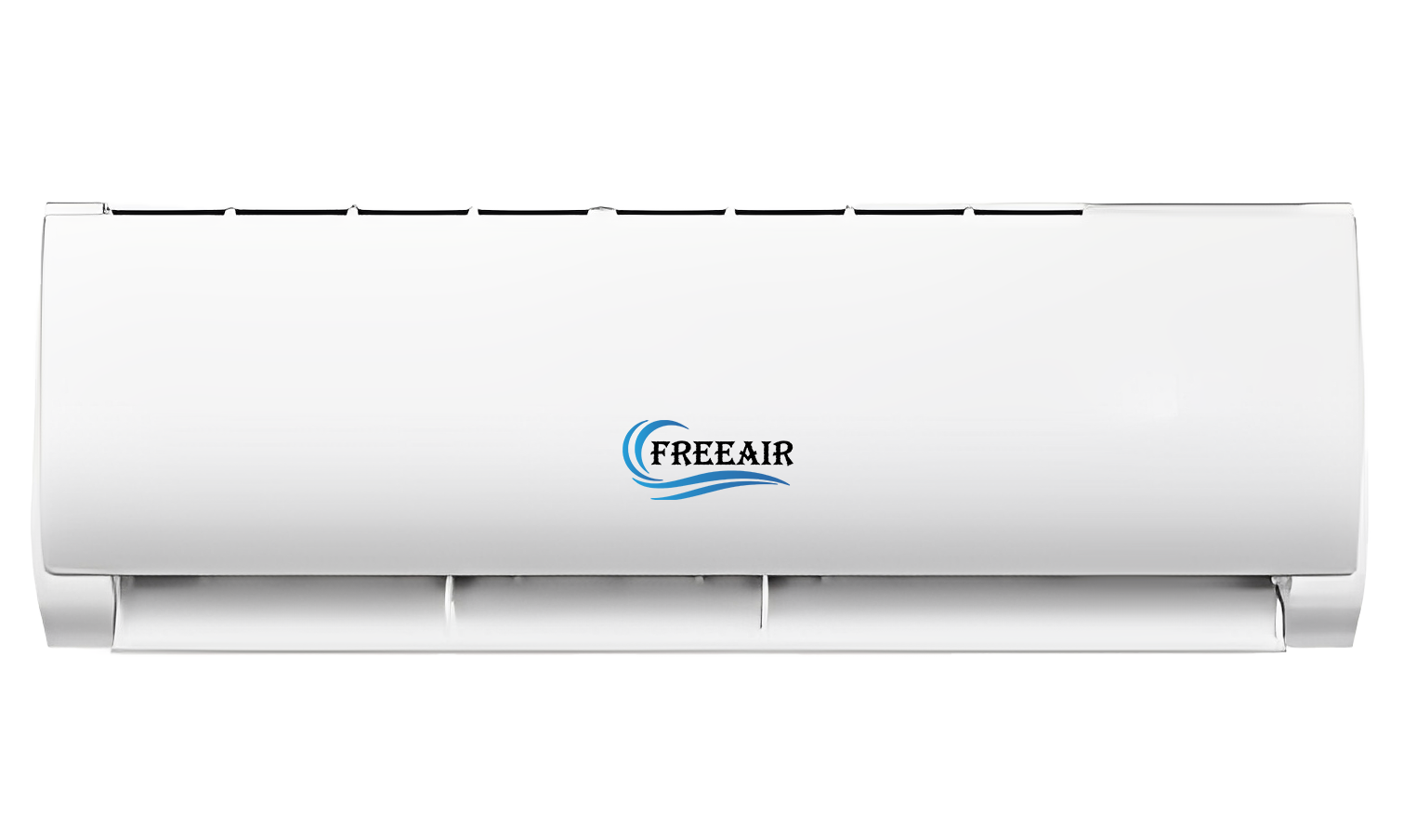

AC INVERTER R410a – Cooling & heating 9000btu

Nameplate Parameter:

1- Rated Capacity:
A- Cooling: 2600W
B- Heating: 2640
2- Rated Power Consumption
A- Cooling: 880W
B- Heating: 700W
3- Rated Running Current:
A- Cooling: 4.1A(1.1-5.7)
B- Heating: 3.44A(1.1-5.7)
4- Max. Input Power: 1400W
5- Max. Input Current: 5.7A
6- EER Cooling: 2.95 W/W
7- COP Heating: 3.77W/W
8- Power supply source: 220-240V~/50Hz
9- Refrigerant: R410A
10- Refrigerant Charged 590g
11- Max. Discharge Pressure 4.15Mpa
12- Max. Suction Pressure 1.15Mpa
13- Air Flow Volume 430 m3/h
14- Noise Level: 43 dB(A)
15- Noise Level: 53 dB(A)
16- Indoor unit weight: 7 kg
17- Outdoor unit weight (Net) 18 kg

Indoor unit configuration:

1- Net Dimension: 22F 690x283x199 mm
2- Packing Dimension: 760x347x277 mm

Connection:

1- Stop Valve:
A- Liquid: Dg4
B- Gas: Dg8

Outdoor unit configuration:

1- Compressor Model: HIGHLY GSX088BKQA6JT8
2- Net Dimension 0.8PA 650x455x278
3- Packing Dimension 760x510x305

Container Loading 40 HC: 370 Sets
