Basic parameters |
|
|
Vendor |
FAW HONGQI |
|
Level |
Mid-size car |
|
Energy type |
PURE ELECTRIC |
|
Time to market |
2024.04 |
|
CLTC pure electric range (km) |
450 |
|
Fast charging time of battery (hours) |
0.43 |
|
Battery fast charging range (%) |
20-80 |
|
Maximum power (kW) |
100 |
|
Maximum torque (N · m) |
260 |
|
Body structure |
4-door 5-seater sedan |
|
Electric motor (Ps) |
136 |
|
Length*width*height(mm) |
5040*1910*1569 |
|
Maximum speed (km/h) |
130 |
|
WLTC comprehensive fuel consumption (L/100km) |
1.46 |
|
Curb weight (kg) |
1840 |
Maximum Full Load Mass (kg) 2290
|
Boby |
|
|
Length (mm) |
5040 |
|
Width (mm) |
1910 |
|
Height (mm) |
1569 |
|
Wheelbase (mm) |
2990 |
|
Front wheelbase (mm) |
1630 |
|
Rear wheelbase (mm) |
1630 |
|
Approach angle (°) |
14 |
|
Departure angle (°) |
18 |
|
Minimum turning radius (m) |
5.85 |
|
Body structure |
sedan |
|
Door opening method |
side-hung door |
|
Number of car doors (pieces) |
4 |
|
Number of seats (units) |
5 |
|
Rear compartment capacity (L) |
433 |
|
Electromotor |
|
|
Brand of electric motor |
zhuzhouzhongche |
|
motor model |
CAM210PT6 |
|
Motor type |
Permanent magnet/synchronous |
|
Total power of electric motor (kW) |
100 |
|
Total horsepower of electric motor (Ps) |
136 |
|
Total torque of electric motor (N · m) |
260 |
|
Maximum power of front motor (kW) |
100 |
|
Maximum torque of front motor (N · m) |
260 |
|
Number of driving motors |
single motor |
Motor layout Front
|
Battery Type |
lithium iron phosphate battery |
|
Battery cell brand |
Times FAW CATL |
|
Battery cooling method |
liquid cooling |
|
CLTC pure electric range (km) |
450 |
|
Battery energy (kWh) |
60 |
|
Battery energy density |
141 |
|
Power consumption per 100 kilometers (kWh/100km) |
12.9 |
|
Fast charging function |
support |
|
Fast charging time of battery (hours) |
0.43 |
|
Battery fast charging range (%) |
20-80 |
|
Location of fast charging interface |
Car left front side |
|
Gearbox |
|
|
abbreviation |
Electric vehicle transmission |
|
Number of gears |
1 |
|
Transmission type |
fixed ratio gearbox |
|
Chassis steering |
|
|
Drive type |
Front drive |
|
Front suspension type |
McPherson independent suspension |
|
Rear suspension type |
multi-link independent suspension |
|
Booster type |
Electric power assist |
|
car body structure |
integral body construction |
|
Wheel braking |
|
|
Front brake type |
Ventilated disk type |
|
Rear brake type |
disk type |
|
Parking brake type |
Electronic parking brake |
|
Front tire specifications |
235/50 R18 |
|
Rear tire specifications |
235/50 R18 |
|
Spare tire specifications |
no |
|
Passive safety |
|
|
Driver/passenger seat airbags |
Driver:●/Passenger:● |
|
Front/rear side airbags |
— |
|
Front/rear head airbags (air curtains) |
— |
|
Active Safety |
|
|
ABS anti lock braking system |
● |
|
Braking force distribution (EBD/CBC, etc.) |
● |
|
Brake Assist (EBA/BAS/BA, etc.) |
● |
|
Brake Assist (EBA/BAS/BA, etc.) |
● |
|
Vehicle stability control (ESC/ESP/DSC, etc.) |
● |
|
Tire pressure monitoring function |
Tire pressure alarm |
|
Reminder for not fastening seat belt |
Whole car |
|
ISOFIX child seat interface |
● |
|
Low speed driving warning |
● |
|
Driving control |
|
|
Switching driving modes |
economy Standard/Comfort |
|
energy recovery system |
● |
|
Automatic parking |
● |
|
Hill Start Assist |
● |
|
Driving hardware |
|
Driving assistance imaging Reverse image
Number of cameras 1 piece
|
Appearance/Anti-theft |
|
|
Wheel rim material |
Aluminium alloy |
|
Electric trunk |
– |
|
Interior central locking system |
● |
|
Key type |
Remote key |
|
Keyless Start System |
● |
|
Keyless entry function |
– |
|
Remote start function |
● |
|
Battery preheating |
● |
|
Exterior lights |
|
|
Low beam light source |
LED |
|
High beam light source |
LED |
|
Adjustable headlight height |
● |
|
Skylight/Glass |
|
|
Sunroof type |
– |
|
Front/rear power windows |
Front:●/Rear:● |
|
One click window lifting function |
whole car |
|
Window anti pinch function |
● |
|
Interior makeup mirror |
main driver co-pilot |
|
outside rear-view mirror |
|
|
Exterior rearview mirror function |
Electric adjustment Rearview mirror heating |
|

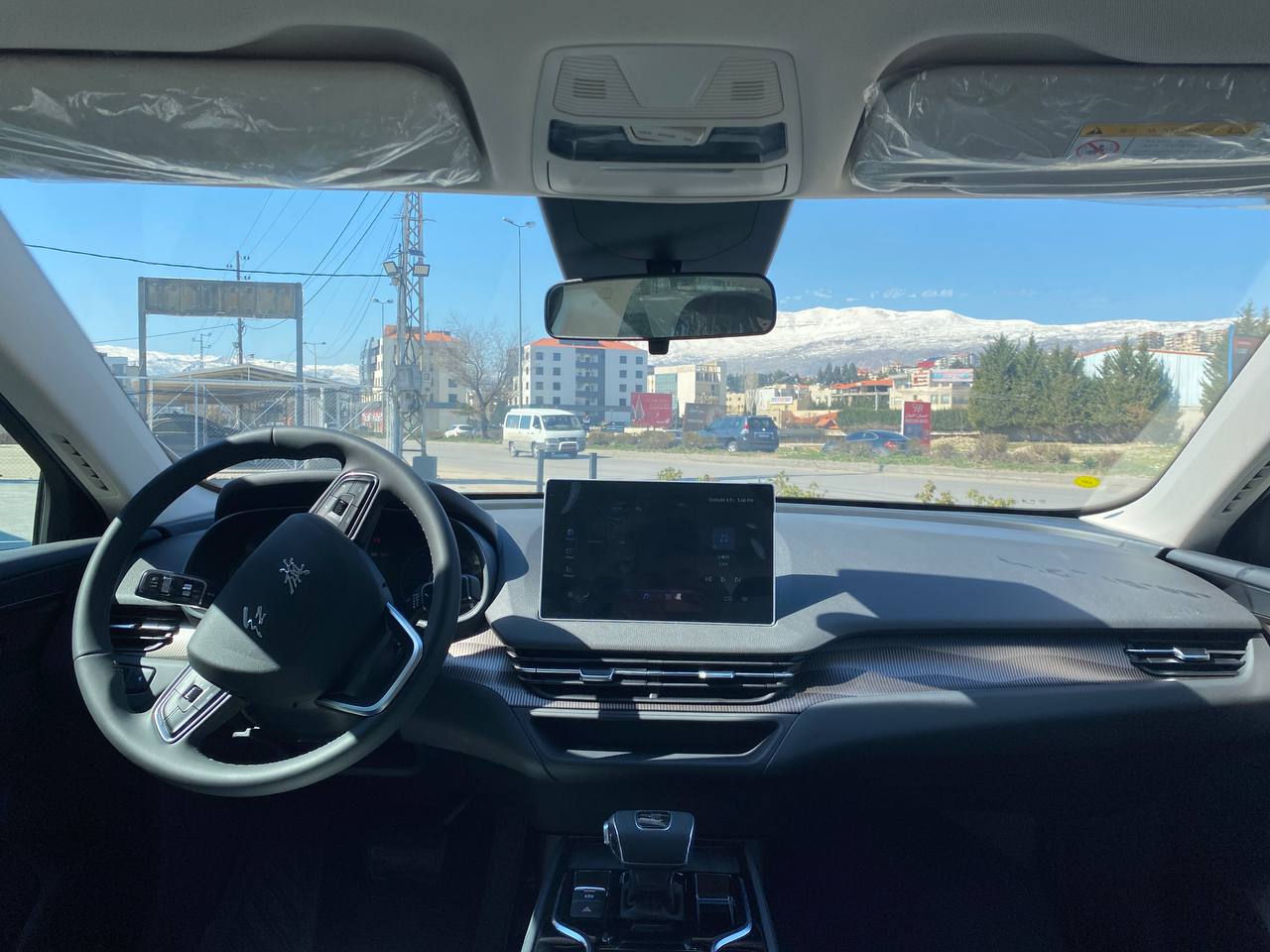

Screen/System |
|
|
Central control color screen |
Touch LCD screen |
|
Central control screen size |
10.1 inches |
|
Bluetooth/Car Phone |
● |
|
application store |
● |
|
Intelligent configuration |
|
|
Internet of Vehicles |
● |
|
4G/5G network |
4G |
|
OTA upgrade |
● |
|
Wi Fi hotspot |
● |
|
Remote function of mobile APP |
Air conditioning control Vehicle condition inquiry/diagnosis |
|
Steering wheel/Inside mirror |
|
|
Steering wheel material |
PLASTIC |
|
Steering wheel position adjustment |
Manual up and down adjustment |
|
Shift mode |
Electronic gear shift lever |
|
Multifunction steering wheel |
● |
|
Driving computer display screen |
colourful |
|
Interior rearview mirror function |
Manual anti-glare |
|
In-car charging |
|
|
Multimedia/charging interface |
USB |
|
Number of USB/Type-C interfaces |
1 in the front row 2 in the back row |
|

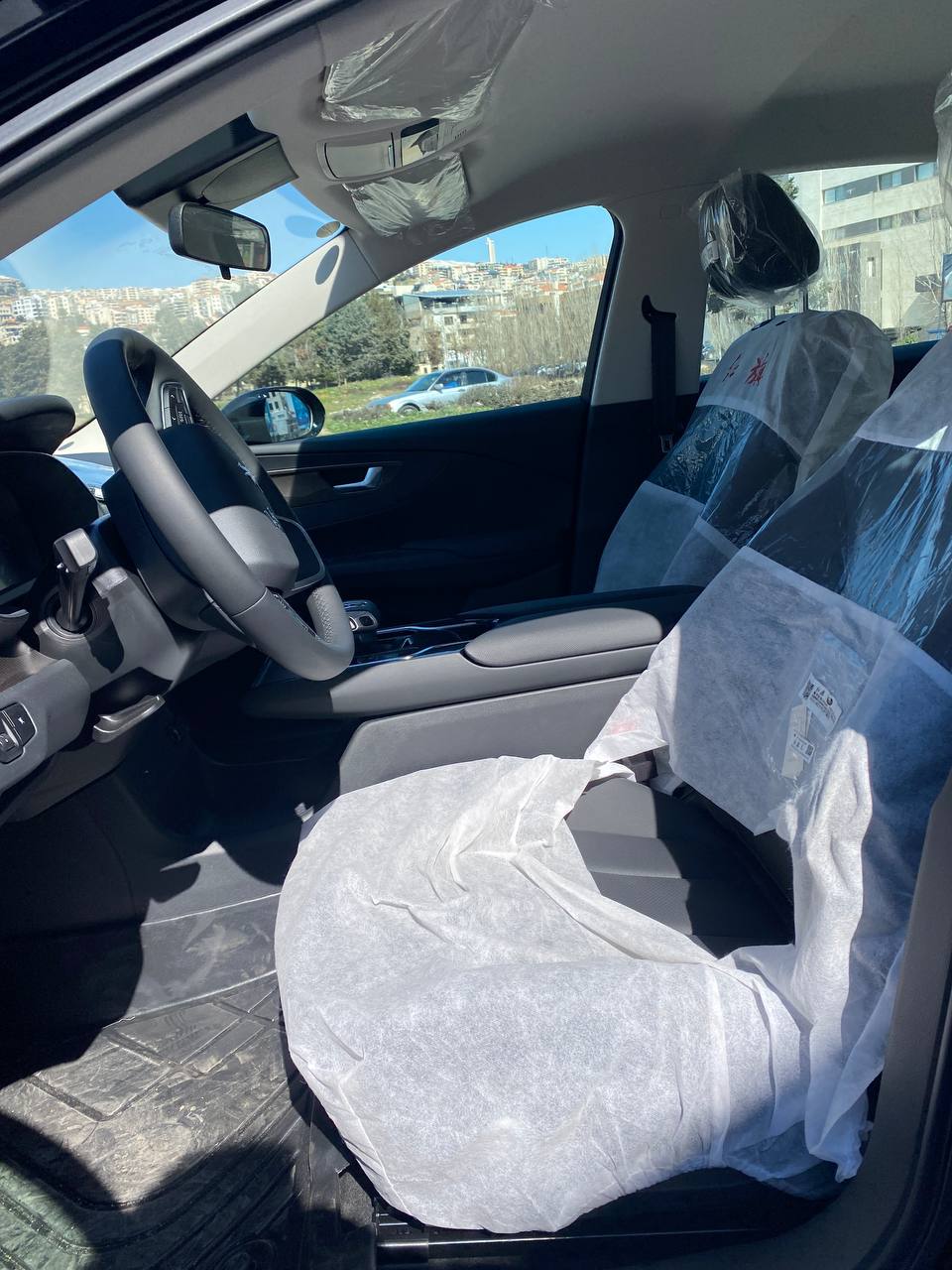

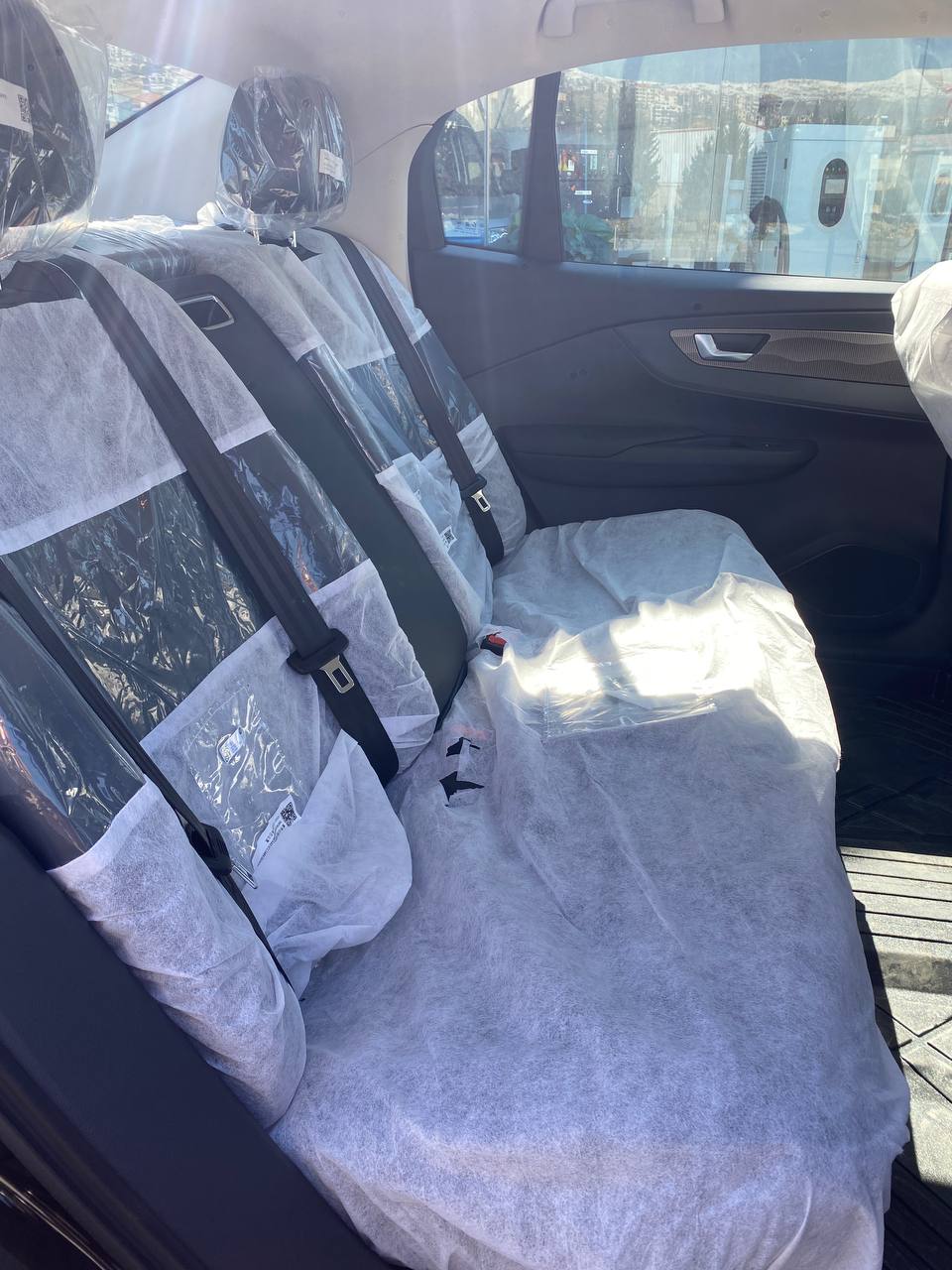

Seat configuration |
|
|
Seat material |
imitation leather |
|
Main seat adjustment method |
Anteroposterior adjustment Backrest adjustment |
|
Auxiliary seat adjustment method |
Anteroposterior adjustment Backrest adjustment |
|
Electric adjustment for driver/passenger seats |
– |
|
Front seat function |
ventilation(Driver) |
|
Front/rear center armrest |
Front:●/Rear:● |
|
Rear cup holder |
● |
|
Sound system/interior lighting |
|
Number of speakers 4 speakers
|
Air conditioning/refrigerator |
|
|
Air conditioning temperature control method |
automatic air conditioning |
|
Temperature zoning control |
● |
|
In car PM2.5 filtration device |
● |
